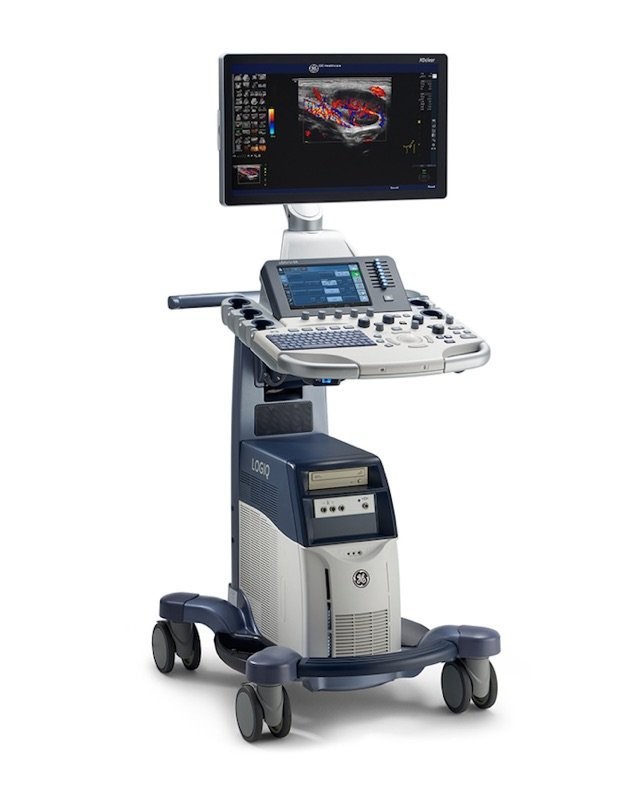

Ультразвуковой сканер GE Logiq S8 с XDclear

GE Logiq S8 With XDClear Dimensions and Weight:

• Height: 1,150mm, 45.3 inch (Minimum), 1,720mm, 67.7 inch (Max.)
• Width: 620mm, 24.4 inch (Caster), 500mm, 19.7inch (Keyboard)
• Depth: 880mm, 34.6 inch (Max.), 790mm, 31.1inch (Caster)
• Weight: 85 kg (187.4 lb.)

GE Logiq S8 With XDClear Specifications:

• Digital beamformer
• Displayed Imaging Depth: 0 – 33 cm
• Minimum Depth of Field: 0 – 2 cm (Zoom) (probe dependent)
• Maximum Depth of Field: 0 – 33 cm (probe dependent)
• Continuous dynamic receive focus/continuous dynamic receive aperture

GE Logiq S8 With XDClear Electrical power:

• Voltage:100-120 Vac or 220-240 Vac
• Frequency: 50/60 Hz
• Power: Consumption maximum of 900 VA with peripherals

Review

GE Logiq S8 XDClear Review:

The GE Logiq S8 with XDClear like the younger brother system Logiq S7 with XDClear developed based on GE’s advanced S-agile ultrasound architecture. The GE Logiq S8 with XDClear has become very reliable and trustworthy while reaching revison 3.0, and addtionally GE incorporated single crystal transducers, so called XDClear transducers such as C1-6-D, C2-9-D, and C3-10-D. The user can enjoy preimum image resolution, penetration, and wide bandwidth that the GE Logiq E9 supported only before. The GE Logiq S8 with XDClear is one of the great high end ultrasound options because of its sufficient probe line-up and rich features including still premium features like single crystal probe options, Cardiac Automated Function Imaging(Cardiac AFI), and Shear Wave Elastography. However, The price point of the GE Logiq S8 with XDClear is still high compared to similar products from Philips Affiniti 70 and Affiniti 50.

GE Logiq S8 XDClear Features:

• High resolution 23″ wide LCD monitor
• High resolution 9.0″ wide LCD touch screen
• 4 active probe ports and 1 parking probe port
• Integrated HDD
• Integrated DVD Multi Drive
• Integrated speakers
• Locking mechanism that provides rolling lock and caster swivel lock
• Integrated cable management
• Front and rear handles
• Easily removable air filters
• Automatic Optimization
• CrossXBeam
• Speckle Reduction Imaging (SRI-HD)
• Fine Angle Steer
• Coded Harmonic Imaging
• Virtual Convex
• Patient information database
• Image Archive integrated on CD/DVD and Hard Drive
• Real-time automatic Doppler calcs
• OB Calcs
• Fetal Trending
• Multi gestational Calcs
• Hip Dysplasia Calcs
• Gynecological Calcs
• Vascular Calcs
• Urological Calcs
• Renal Calcs
• Cardiac Calcs
• inSite ExC Capability
• On-board electronic documentation
• Advanced 3D
• Raw Data Analysis

Accessories

GE Logiq S8 with XDClear Peripheral Options:

• Sony Digital UP-D711 Termal Printer
• Sony Fixture Kit for Digital UP-D711 Thermal Printer
• Sony Digital UP-D25 Color Thermal Printer
• Sony Digital UP-D897 BW Thermal Printer
• Mitsubishi P93W/E Thermal Printer
• Mitsubishi P95DW Thermal Printer
• Printer installation kit
• External USB printer connection
• Wireless LAN
• DVI-D output available for compatible devices
• Footswitch with programmable functionality
• Universal Video Converter
• Power Assistant
• Battery Pack (for Power Assistant)
• Isolation Transformer
• Isolated 1Gb Ethernet connection
• Isolated USB connector
• EMI filter (PWR supply noise filter)
• RS-DLP Probe Adapter for TEE Probe
• Drawer
• Small Probe Holder (Probe Holder Adapter for Small Probe)
• Multi Purpose Holder (Vertical Endocavitary Probe Holder)
• Optional Probe Holder (Side Probe Holder)
• Probe cable hanger
• ECG + AHA/IEC® Cables
• USB 3 Pedal Foot Switch

GE Logiq S8 with XDClear Supplies:

Aquasonic ultrasound gel
Sono ultrasound wipes
Sony UPP-110HG thermal printing paper
Sony UPC-21L color thermal printing pack
Mitsubishi KP95HG thermal roll paper (new)
Mitsubishi KP65HM-CE High density thermal paper

GE Logiq S8 with XDClear ports:

• USB 2.0 x 5 ports
• DVI-D signal with HDMI connector
• Ethernet

GE Logiq S8 with XDClear image storage:

• On-board database of patient information from past exams
• Storage Formats:
• DICOM – compressed/ uncompressed, single/ multiframe, with/ without Raw Data
• Export JPEG,JPEG2000, WMV (MPEG 4), and AVI formats
• Storage Devices:

– USB Flash Device: 64MB to 64GB (for exporting individual images/clips)

– CD-R storage: 700MB

– DVD storage: R (4.7GB)

– Hard Drive Image Storage: ~300GB

– Compare previous exam images with current exam images

– Reload of archived data sets

– Network Storage support for Import, Export, DICOM Read, SaveAs, SaveAs

Options

GE Logiq S8 with XDClear Options:

• Auto EF
• Cardiac Automated Function Imaging (Cardiac AFI)
• Auto IMT
• Automated Volume Calculation (VOCAL II)
• B-Flow/B-Flow Color
• Breast Measure Assistant
• Breast Productivity Package
• B-Steer+
• Coded Contrast Imaging
• Compare Assistant
• CW Doppler
• DICOM 3.0 connectivity
• Elastography Quantification
• LOGIQView
• Needle Tracking
• OB Measure Assistant
• Parametric Imaging
• Power Assistant
• Quantitative Flow Analysis
• Real-Time 4D
• Report Writer
• Scan Assistant
• Shear Wave Elastography
• Strain Elastography
• Stress Echo
• Thyroid Productivity Package
• Tissue Velocity Imaging (TVI)
• Tomographic Ultrasound Imaging
• Volume Contrast Imaging (VCI) Static
• Volume Navigat

Applications

GE Logiq S8 with XDClear Applications:

• Abdominal
• Obstetrics
• Gynecology
• Breast
• Small parts
• Vascular/Peripheral
• Transcranial
• Pediatric and Neonetal
• Muskuloskeletal
• Urological
• Cardiac

FAQs

GE Logiq S8 with XDClear FAQs:

Auto EF is the function that automatically measure LV ejection fraction. Along with the Automated Function Imaging (AFI) feature, Auto EF maximizes time efficiency by the reproducible quantitative output that increases physician’s diagnostic confidence.

Automated Function Imaging (AFI) is a decision support tool for regional and global assessment of the LV systolic function. AFI is a tool derived from 2D Strain, which calculates the myocardial tissue deformation based on feature tracking on 2D grey scale loops.

Scan Assistant is the customable scanning assistant tool that enables a user to save scanning protocols of each lab that help decrease key stokes up to 60~70% of ordinary operation. With fewer user’s action, an exam can be complete because a user does not need to move all around console and requires only one button push at most of exam.

Compare Assistant views a prior study and current images together in real time via a split screen on the monitor

Quantitative Flow Analysis helps quantify and evaluate the blood flow within a region of interest, to assist with diagnosis and monitoring

Strain Elastography is a non-invasive diagnostic technique displaying the relative elasticity of tissue stiffness compared to surrounding tissue by a real-time color map, superimposed on conventional gray scale image. Most malignant lesions have a harder or stiffer consistency than surrounding benign tissue. This change in stiffness can also be present in chronic or inflammatory diseases. To displace the underlying anatomical structures, Strain Elastography requires manual palpation by the user, or compression or decompression of the target produced by the patient respiration. It can be an efficient tool to improve biopsy targeting, image and evaluate breast and testicular lesions, and perform a quick monitoring and follow up of interventional procedures. Additionally, it can provide additional information to increase diagnostic confidence for musculoskeletal diseases such as tendinopathies, tendinosis, synovial hypertrophy or tears.

Swear Wave Elastography on the LOGIQ S8 With XDClear allows the user to visualize the tissue stiffness as a color-coded map in a 2D region of interest as well as providing the user with a quantitative measurement. The LOGIQ S8 With XDClear C1-6-D probe is optimized for liver Shear Wave elastography. It is a tool for noninvasive quantification of tissue stiffness and has the potential to be useful in the diagnosis, staging, and management of diseases associated with changes in tissue elasticity.
