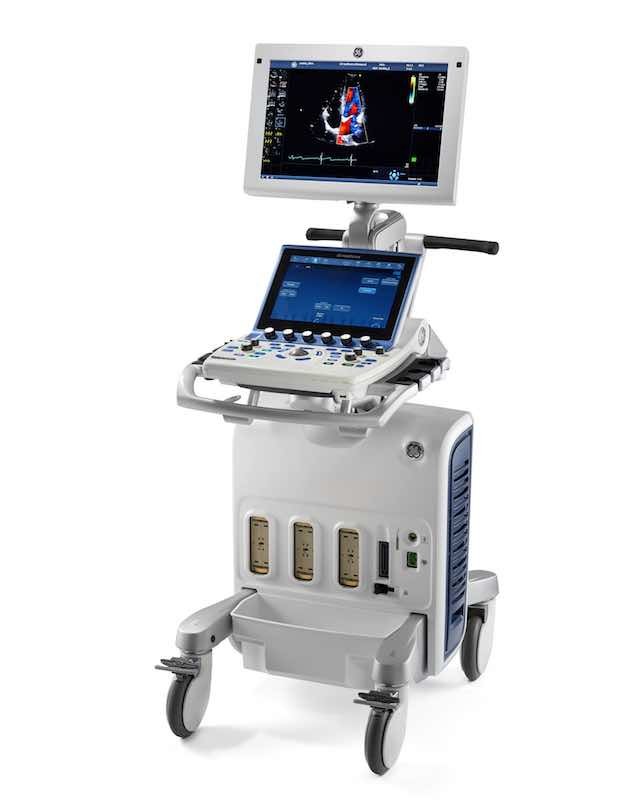

Ультразвуковой сканер GE Vivid S70

GE Vivid S70 Dimensions and Weight:

• Width: 54 cm, 21.4″
• Depth: 76 cm, 30.2″
• Height: 138 cm – 168 cm, 54.4″ – 66.7″
• Minimum height with folded screen: 112 cm, 44.4″
• Weight: <73 kg, 161 lbs

GE Vivid S70 Specifications:

• Infinite number of effective channels
• Minimum field-of-view range (depth): 0 – 2 cm (zoom) (probe dependent)
• Maximum field-of-view range (depth): 0 – 36 cm (probe dependent)
• Width range: 10 – 120 degrees
• Continuous dynamic receive focus/ continuous dynamic receive aperture
• Continuous dynamic transmit focus
• Adjustable dynamic range, infinite upper level

GE Vivid S70 Electrical power:

• Nominal input voltage: 100-240 VAC, 50/60 Hz
• Rated power consumption: 500 VA

The GE Vivid S70 and Vivid S60 are GE’s new cardiovascular systems that cover the wide range of price points from premium mid range to high end cardiac application, meeting long-term customer’s requirements from GE Vivid S6 and Vivid S5 for last a decate. The GE Vivid S70 and Vivid S60 are empowered by GE’s new cSound software beamformer and image reconstuction platform. Along with new cSound plaform, Another major improvement of GE Vivid S70 is that 2 XDClear transducers (M5Sc-D, C1-6-D) added that enhances resolution, sensitivity and penetration. Vivid E sereis and Vivid S sereis utilize the cSound software beamforming architecture, but not exactly the same, the Vivid E series integrated more advanced hard ware platform and transducers. So does it work better. The major difference of GE Vivid S70 and GE Vivid S60 is that the GE Vivid S70 suports 4D TTE and XDClear technology. The GE Vivid S70 with 4D TTE option could be a good option for Cath Lab or OR if a higer version is not affordable. The combination of cSound and M5Sc XDClear transducer expects a user to have highly improve 2D and Doppler cardiac images too. Its 19″ monitor seems a bit small comparing to competitor’s system like Affiniti series with a 21.5″ wide LCD monitor. However, the larger 12″ LCD touch screen will give support for a more comfortable and efficient workflow to a user. The bigger weak point of Vivid S70 and Vivid S60 is a narrow range of transducers, especially there is only one linear option, 9L-D. A couple of linear including an intraoperative probe must be added soon. If 4D TTE is not a reason to buy a high end cardiac system, then, the GE Vivid S60 or factory refurbished GE Vivid E9 can be an option too.

GE Vivid S70 Features:

• 19″ wide screen High-Definition (HD) flicker-free LCD display
• 12″ ultra-high-resolution, multi-touch LCD wide screen
• 4 active probe ports and one CW port
• ECG port
• Integrated HDD
• Multiple USB ports (front/back)
• Integrated DVD-R multi drive (optional )
• On-board storage for B/W thermal printer
• Integrated speakers for premium sound
• Four swivel wheels – front wheel breaks, rear wheels direction lock
• Integrated cable management
• Easily accessible removable air filters for cleaning
• Front and rear handles
• Side storage trays
• Hand rest
• Automatic Optimization
• CrossXBeam
• Speckle Reduction Imaging (SRI-HD)
• Coded phase inversion
• Tissue velocity M-mode
• Continuous wave Doppler
• Tissue M-mode
• Pulsed wave Doppler
• Anatomical M-mode
• Curved anatomical M-mode
• Tissue velocity imaging
• Tissue velocity Doppler
• B-flow
• Raw Data Analysis
• Real-time automatic Doppler calcs
• Tissue Tracking Mode
• Extended field-of-view (LOGIQView)
• LVO Contrast

Accessories

GE Vivid S70 Peripheral Options:

• Sony Digital UP-D711 Termal Printer
• Sony Fixture Kit for Digital UP-D711 Thermal Printer
• Sony Digital UP-D25 Color Thermal Printer
• Sony Digital UP-D897 BW Thermal Printer
• Mitsubishi P93W/E Thermal Printer
• Mitsubishi P95DW Thermal Printer
• USB B/W video printer with control from system
• External USB printer connection
• 16 GB encrypted memory stick
• Three-pedal configurable footswitch
• DVI-I
• Ethernet – 10 Mbps, 100 Mbps, 1 Gbps
• Multiple USB 2.0 ports
• RS-DLP Probe Adapter for TEE Probe
• Integrated gel holders
• ECG + AHA/IEC® Cables

GE Vivid S70 Supplies:

• Aquasonic ultrasound gel
• Sono ultrasound wipes
• Sony UPP-110HG thermal printing paper
• Sony UPC-21L color thermal printing pack
• Mitsubishi KP95HG thermal roll paper (new)
• Mitsubishi KP65HM-CE High density thermal paper

GE Vivid S70 ports:

• DVI-I
• Ethernet – 10 Mbps, 100 Mbps, 1 Gbps
• Multiple USB 2.0 ports

GE Vivid S70 image storage:

• 4D virtual store (with 6VT probe and 4D option)
• On-board database of patient information from past exams
• Storage formats:

– DICOM®-compressed or uncompressed, single/multi-frame, with/without raw data, storage via clipboard and/or seamlessly directly to destination device

– Transfer/ “Save As” JPEG, MPEG, AVI, DICOM, Raw DICOM and VolDicom formats

• Storage devices:

– USB memory stick: 16 GB

– CD-RW storage: 700 MB (DVD option required)

– DVD storage: -R (4.7 GB) (DVD option required)

– Hard drive image storage: 0.5 TB

• Compare old images with current exam
• Reload of archived data sets
• Activation control of USB devices

Options

GE Vivid S70 Options:

• Tissue synchronization imaging
• Intima Media Thickness (IMT)
• CW Doppler
• Strain/Strain Rate Mode (option, enabled by Advanced QScan)
• Tissue Synchronization Imaging Mode (option, enabled by Advanced QScan)
• B-flow
• 2D stress
• Auto EF
• Automated Function Imaging (AFI)
• Automated Ejection-Fraction Calculation (AutoEF)
• Contrast Low MI(Research only)
• 4D Mitral Valve Assessment (Only works on stored patient data)
• Z-Scores
• Quantitative Analysis Package (Q-Analysis)
• EchoPAC™/Patient Archive
• Insite™ Express Connection (ExC) Enables Remote Service and Training
• Advanced 4D Options

– Dynamic multi-slice views

– Live multi-slice views

– Dynamic crop

– Measurement on render

• Standard 4D Features (available with the 4D option)

– Single, dual or multiple cycle volume acquisition

– Bi-plane acquisition includes tilt and rotate, and bi-plane prepare

– Tri-plane acquisition

– Multi-dimensional (bi-plane/tri-plane) color acquisition

– FlexiSlice with depth mode

– QuickRotate/Rotate

– 2 Click crop

– Flip crop

– View crop

– Dynamic view crop

– Measurement on render

– FlexiZoom

– Laser lines

– Depth color render

– Automated 4D left ventricular quantification (LV volume and EF)

Applications

GE Vivid S70 Applications:

• Cardiac
• Stress (optional )
• Abdominal
• Peripheral vascular
• Fetal heart
• Pediatrics
• Neonatal cephalic
• Adult cephalic
• Small parts
• Thyroid
• Musculoskeletal
• Urology
• Rodent (optional )
• Transesophageal
• OB/GYN
• Coronary
• LVO contrast (optional )
• Nerves
