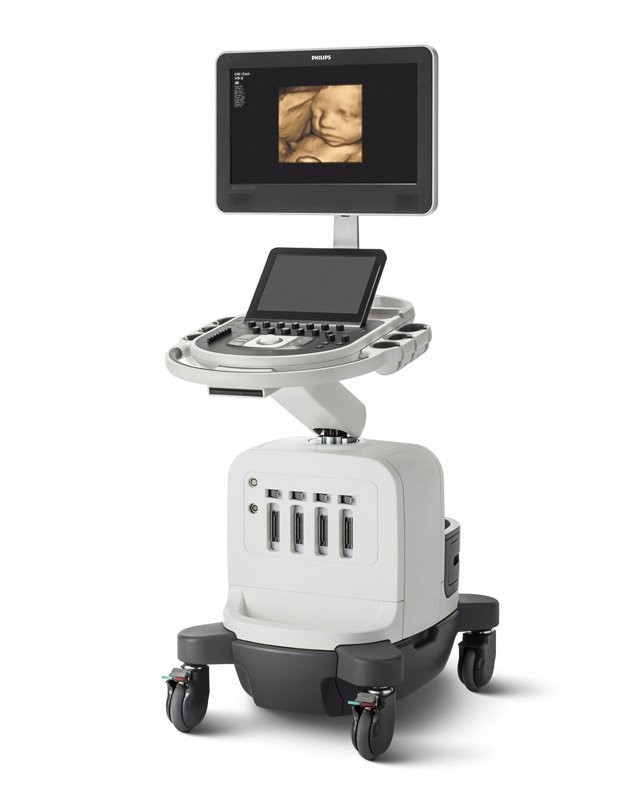

KPI’s on-staff sonographer can provide onsite applications training or remote training via video conference at a set price plus travel costs. A pre-recorded video training course is included in the sale, lease or rental of the Philips Affiniti 50 from KPI ultrasound.
Free technical support is available from KPI during installation and over the course of the standard limited warranty. Technical support is available after the warranty period at an hourly cost per issue.
KPI recommends the use of a surge protector along with a dedicated power outlet. Probes should be disinfected after every use with a disinfectant wipe proven not to damage the lens (KPI recommends SonoWipes for this.) KPI recommends one PM visit (preventative maintenance) every year.
Height: (adjustable, maximum) 1626 mm (64 in), (minimum) 1422 mm (56 in)
Width: 572 mm (22.5 in)
Depth: 983 mm (38.7 in)
Weight: (no peripherals) 83.6 kg (184.4 lbs.), approx. 325 lbs. with packaging
Powerful distributed multi-core processing architecture
Up to 4,718,592 total digital channels
Image presentation: Depth from 1 cm to 30 cm (transducer-dependent)
Up to 280 dB digital broadband acoustic beamforming
Voltage: 100V-240V
Frequency 50/60 Hz
Power consumption: < 289 VA depending on system configuration
Категории: Philips
| Вес | 83.5 кг |
| Год выпуска | 2014 |
| Estimated Market Price | Mid |
| Monitor (inch) | 21.5" |
| Tilt/Rotate Adjustable Monitor | Да |
| Monitor Resolution | 1024*768 |
| Touch Screen (Inch) | 12 |
| Trackball or Trackpad | Trackball |
| CP Back-Lighting | Yes |
| Probe Ports | 4 |
| Battery | Да |
| Sleep Mode (Quick Start) | Да |
| Maximum Depth of Field | 30cm |
| Minimum Depth of Field | 2cm |
| Cart (HCU) | Нет |
| Independent Steer & Lockable | Да |
| Connectivity | |
| DICOM 3.0 | Да |
| DICOM SR_Cardiac | Да |
| DICOM SR_Vascular | Да |
| DICOM SR_OB/GYN | Да |
| JPEG, WMV, & AVI | Да |
| USB | Да |
| HDD/SDD | 512GB |
| DVD/CD RW | Да |
| Wireless LAN | Да |
| Imaging Modes | |
| 2D, M mode | Да |
| M-color Flow Mode | Да |
| Anatomical M-mode | Да |
| Trapezoidal Mode | Да |
| Color, Power Angio, Pulse Wave | Да |
| Bi-directional Power (=HD FLOW) | Да |
| SCW Doppler | Да |
| Tissue Doppler(Velocity) Imaging | Да |
| Freehand 3D | Да |
| Live 3/4D OB/GYN | Да |
| HD Live | Нет |
| STIC (Spatio-Temporal Image Correlation) | Да |
| Live 3D Echo | Нет |
| Stress Echo | Да |
| Strain and Strain Rate (Cardiac) | Да |
| B Flow | Нет |
| Panoramic Imaging (=Logiq view) | Да |
| Contrast Imaging - Cardiac | Да |
| Contrast Imaging - General Imaging | Да |
| Strain-based Elastography | Да |
| Shear Wave Elastography | Нет |
| Features | |
| Tissue Harmonic Imaging | Да |
| Spatial Compounding(=CrossXbeam) | Да |
| Speckle Reduction (=SRI) | Да |
| Auto Image Opt(B mode) | Да |
| Auto Image Opt(Doppler) | Да |
| Write Zoom | Да |
| Triplex Mode | Да |
| Needle Enhancement or Needle Recognition | Да |
| Auto NT Measurement (=Sono NT) | Да |
| Auto Follicle 2D Measurement | Да |
| Auto Follicle 3D Measurement | Нет |
| Auto IMT | Да |
| Auto IMT (Real Time) | Нет |
| Automated B/M/D Measurement | Да |
| Automated LH Measurement | Да |
| Live Dual (B/BC) Mode | Да |
| SmartExam or Scan Assistant | Да |
| Fusion | Нет |
| Raw Data File | Да |
| Flexible Report | Да |
| Barcode Reader | Да |
| Gel Warmer | Нет |
| Applications | |
| Abdominal | Да |
| Women's Health Care (GYN & Breast) | Да |
| OB | Да |
| Fetal Echo | Да |
| Vascular | Да |
| TCD(Transcranial) | Да |
| Small Parts (Breast, Thyroid, Testis…) | Да |
| MSK/Anesthesiology | Да |
| Pediatrics | Да |
| Urology (Renal, Prostate…) | Да |
| Echocardiography_Adult | Да |
| Interventional Cardiology | Да |
| Echocardiography_Pediatric | Да |
| Echocardiography_Neonate | Да |
| Stress Echocardiography | Да |
| Transesophageal Echo_Adult | Да |
| Transesophageal Echo_Pediatric | Да |
| Internal Medicine w/ Shared Service | Да |
| Surgury | Да |
| Interventional Radiology | Да |
| Contrast Imaging _ General Imaging (Low MI) | Да |
| Contrast Imaging _ Cardiac (High or Low MI) | Да |
| Bowel Imaging | Да |
| Strain Elastography | Да |
| Shear Wave Elastography | Нет |
